High precision and low power consumption digital temperature sensor chip with single wire interface—JHM3011

JHM3011 is a high-precision and low -power digital temperature sensor chip with a single line interface.

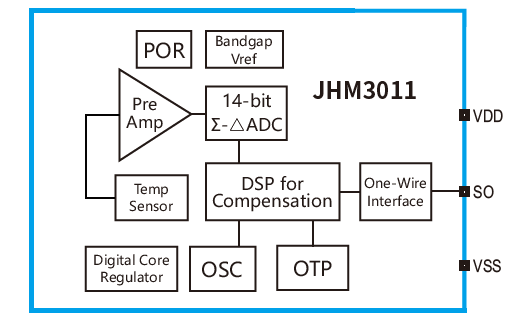

JHM3011 is a high-resolution digital temperature sensor IC that communicates via a single-wire serial digital data output with other devices. It consists of a temperature sensor, an ADC and a digital signal processing unit. It features high temperature accuracy (±0.5℃ between -40℃ to 150℃) and high resolution (down to 0.0625℃). It can operate within the supply voltage of 2.7V to 5.5V with a typical average current 0.5mA.

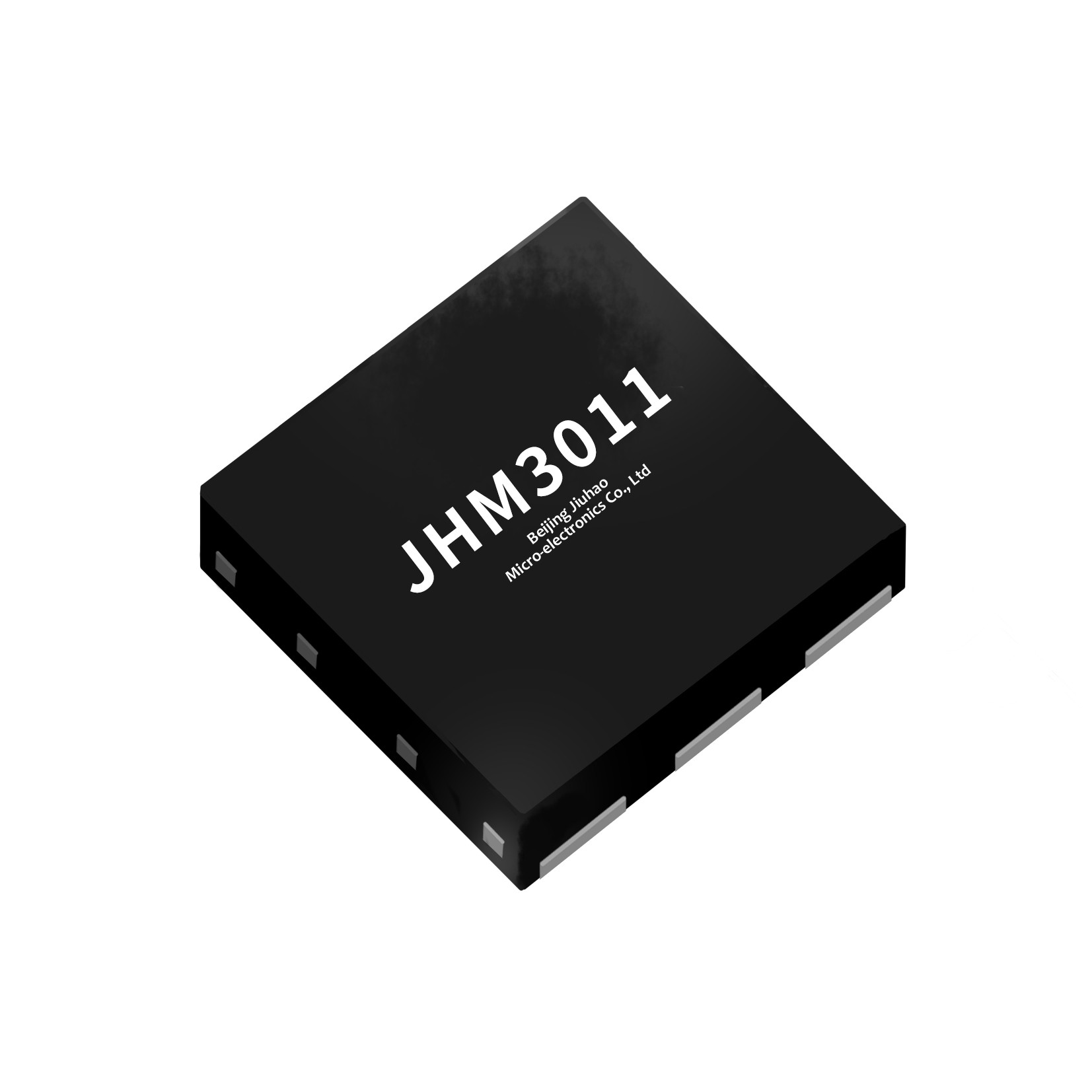

JHM3011 is an easy to integrate and use solution, featuring a factory calibrated sensor, integrated linearization, ideal for PT100 RTD replacement. The devices are available in 6-pin DFN footprint.

Features


  • ±0.5℃(max) from 0℃to 50℃

  • ±1.0℃(max) from -20℃to 85℃

  • ±1.5℃(max) from -40℃ to 125℃

  • ±2.0℃(max) from -40℃ to 150℃

  • Operating temperature range:-40℃ to 150℃

  • Low power consumption: continuous working Power supply voltage range: 2.7V to 5.5V

  • 12 bit resolution: 0.0625 ℃ (1LSB)

  • Single line interface, 32kHz; RTD substitute


Applications


  • Electronic thermometer

  • Wireless environment sensor

  • Thermostat

  • Automobile test equipment

  • Wearable fitness and activity monitor

  • Cold chain asset tracking

  • Gas meters and calorimeters

  • Temperature transmitter
